10A 20A 30A LCD MPPT Solar Panel Battery Regulator Charge Controller 12V/24V UK

Package contents:

1、1*MPPT  Solar Controller
2、1*User Manual
3、1X Temp. Sensor

Brief description:

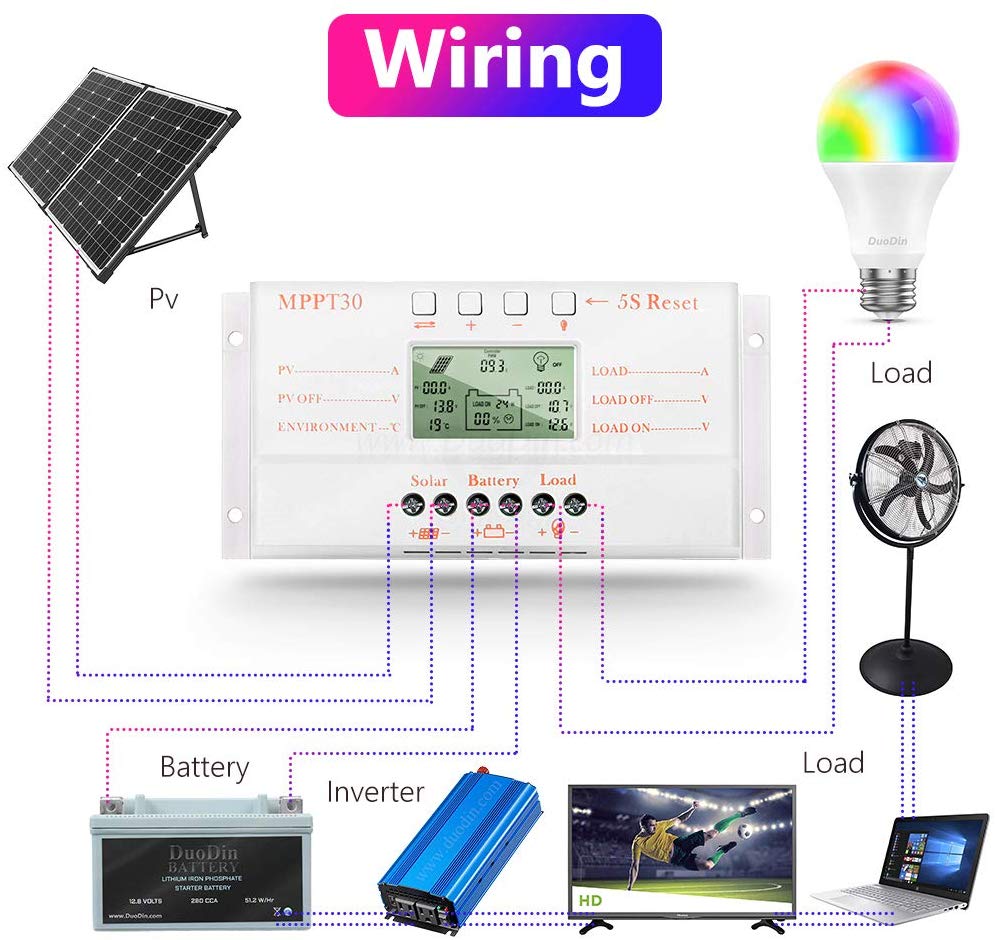

    MPPT 10A/20A/30A solar controller applied to the solar photovoltaic system which is used

to coordinate solar panels, storage battery and load. It is a very important assembly in the

photovoltaic system. It is different from other solar controllers that it is add the comprehensive

protection function makes the whole solar photovoltaic system operate efficiently and safely.

    MPPT 10A/20A/30A solar controller can adjust automatically the working voltage of solar

panels, which can make solar panels work consistently in the maximum power point of the V-A

characteristic curve in a whole day. Compared with common solar controllers, it is equipped

with temperature compensation function, can make the work efficiency of photovoltaic

modules increased by 30%, and can observably prolong the life of the storage battery.

MPPT 10A:

MPPT 10A Solar Panel Charge Controller Regulator Solar panel 130W/12V   260W/24V

Compatible with 260W(24v) solar panel with dark activated function, Max current is 10A Timer

Intigrated (Lighting function)

MPPT 20A:

MPPT 20A Solar Panel Charge Controller Regulator Solar panel 260W/12V   520W/24V

Compatible with 520W(24v) solar panel with dark activated function, Max current is 20A Timer

Intigrated (Lighting function)

MPPT 30A:

MPPT 30A Solar Panel Charge Controller Regulator Solar panel 380W/12V   760W/24V

Compatible with 760W(24v) solar panel with dark activated function, Max current is 30A

Timer Intigrated (Lighting function)

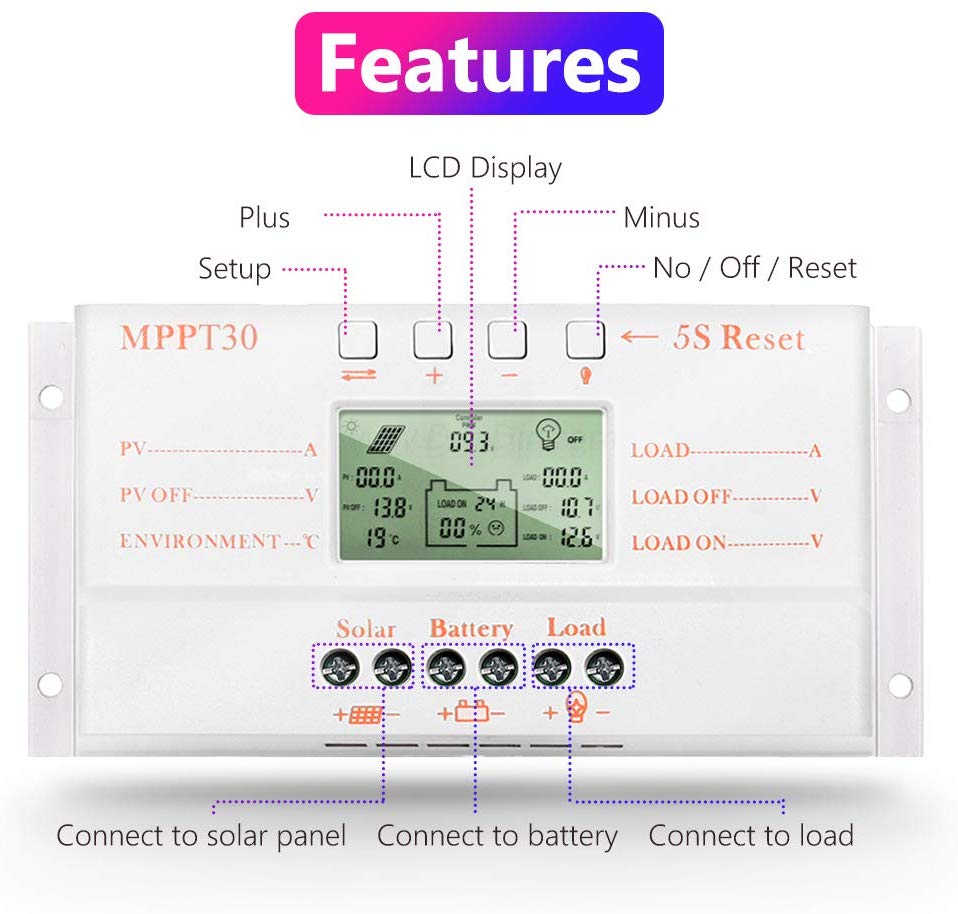

MPPT Series controller has the following features:

Compared with normal solar charge controller, this MPPT controller could increase efficiency by 10%-30%

Solar LCD series a kind of intelligent,multipurpose solar charge and discharge controller


1, LCD screen display

2, Easy operation interface

3, MPPT+PWM charging mode（Controller Provided  MPPT Maximum power point tracking Function,charging mode is PWM)

4, Parameter user can reset,

5, A key to open and close the load,

6, A key to restore the factory settings,

7, Battery reverse discharge protection,

8, Battery reverse polarity protection

9, Battery under voltage protection,

10, Overload, short-circuit protection,

11, Automatic temperature compensation function,

12，Can charge and discharge at the same time,Always keep the battery in full status

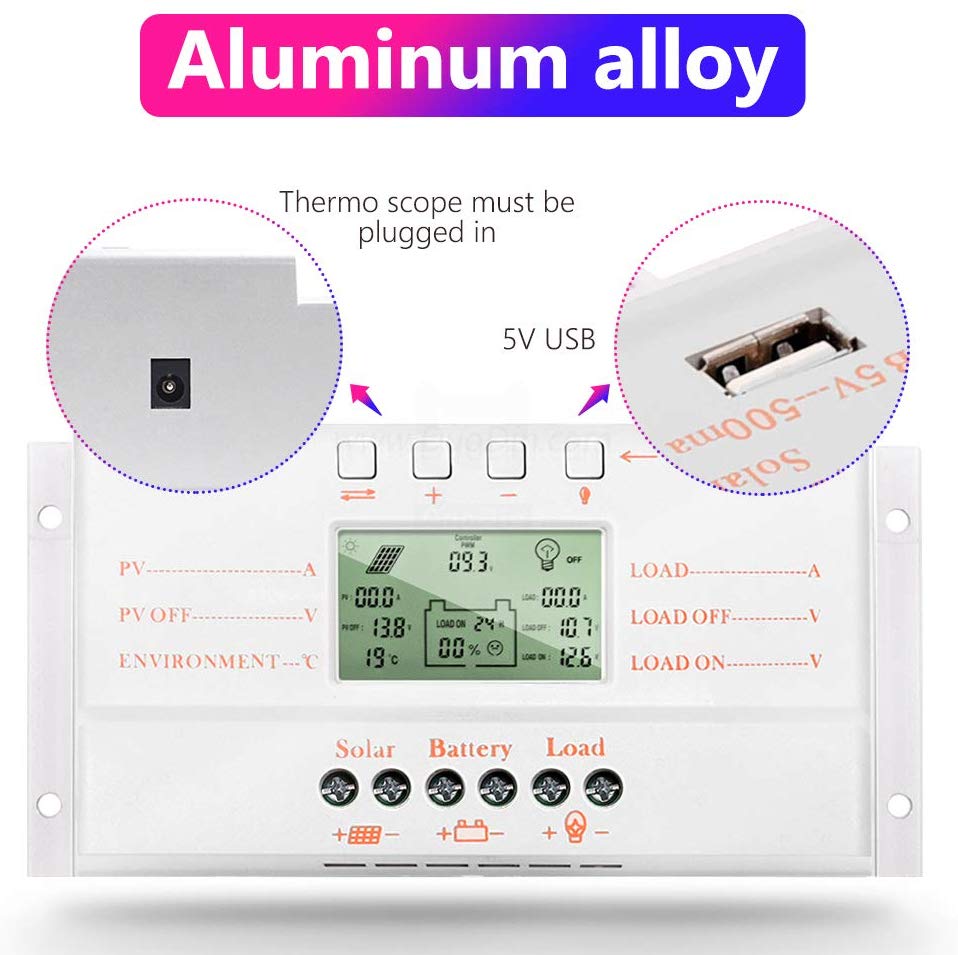

13, USB 5V charging (for 500mA) for mobile phone.(Only MPPT 30A With USB)

      NOTE:Optional USB 5V ,500mA charging
